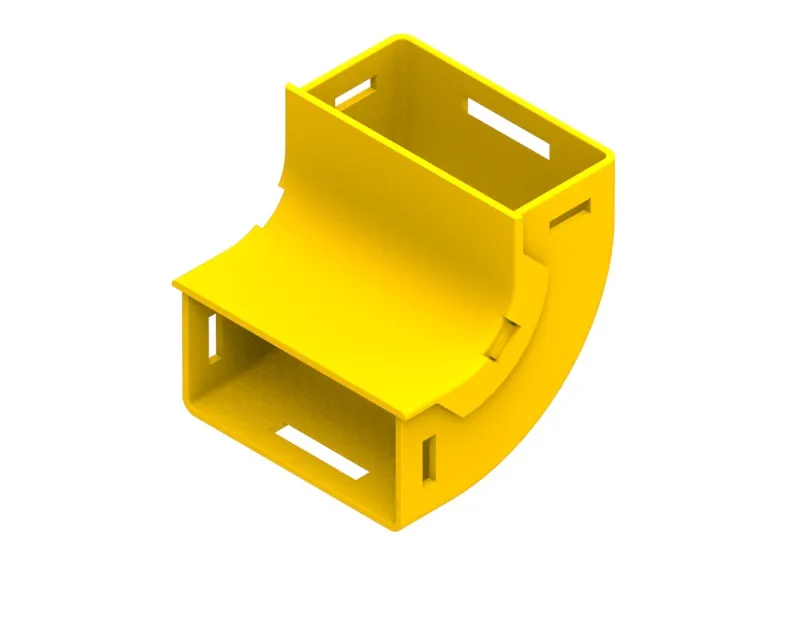

Elbow Assembly 100X50mm 90° Up

 0,00

• Tough, fire retardent material

1 in stock

SKU: TC1279-246A Categories: , ,

Description

The 90° UP elbow is a 100 x 50mm vertical lead off with an internal lid, so that optical fibre cords within the elbow can be accessed. This is usually used where fibre cords are to be installed vertically. There are two 100 x 50mm outlets, which use standard joiners (Part No: TC1279-226) Joiners are available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically rising
  • Angle: 90°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 50 Millimetre
  • Suitable for cable tray width: 50 Millimetre
  • Material thickness: 2 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 120 mm
  • Height: 80 mm
  • Depth: 120 mm
  • Weight: 0.3 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 90° UP elbow is a 100 x 50mm vertical lead off with an internal lid, so that optical fibre cords within the elbow can be accessed. This is usually used where fibre cords are to be installed vertically. There are two 100 x 50mm outlets, which use standard joiners (Part No: TC1279-226) Joiners are available separately.

Attachments
