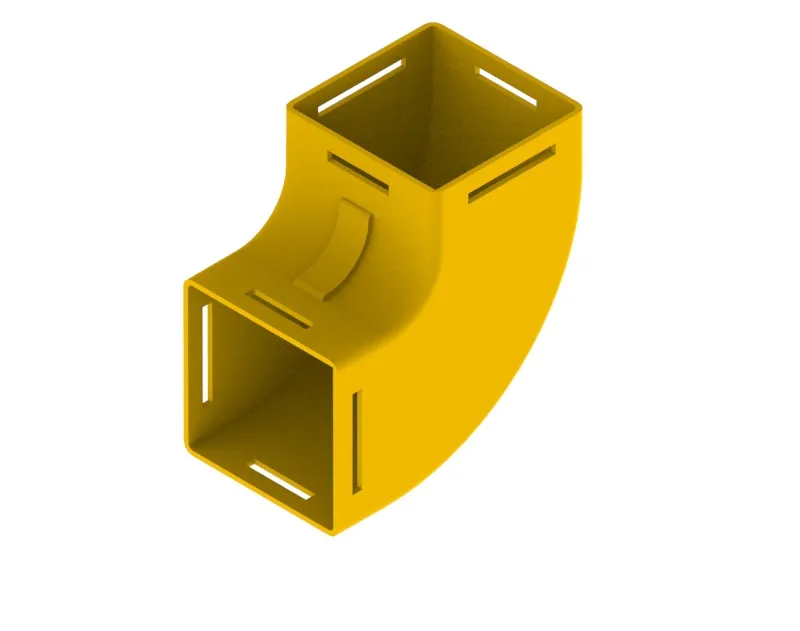

Elbow 90° Up And Down 100mm Duct

Elbow 90° Up And Down 100mm Duct

€ 0,00

• Clips straight into joiner
• Tough, fire retardant material
• Joiners (Part No’s: TC1279-27, Telstra No: 035300514 or TC1279-248A), available separately
• Purchase by the unit

Out of stock

SKU: TC1279-39A Categories: , , Brand:

Description

The 100mm up/down elbow assembly is used to provide a vertical right – angled bend with standard 100mm straight ducting. It provides a simple method for directing fibres between different levels. It requires a standard joiner (Part No: TC1279-27, Telstra No: 035300514), or a slotless joiner (Part No: TC1279-248A) at each interface; which provides a smooth & strong joint.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically rising
  • Angle: 90°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 100 Millimetre
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 174 mm
  • Height: 106 mm
  • Depth: 174 mm
  • Weight: 0.29 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 100mm up/down elbow assembly is used to provide a vertical right – angled bend with standard 100mm straight ducting. It provides a simple method for directing fibres between different levels. It requires a standard joiner (Part No: TC1279-27, Telstra No: 035300514), or a slotless joiner (Part No: TC1279-248A) at each interface; which provides a smooth & strong joint.

Attachments
