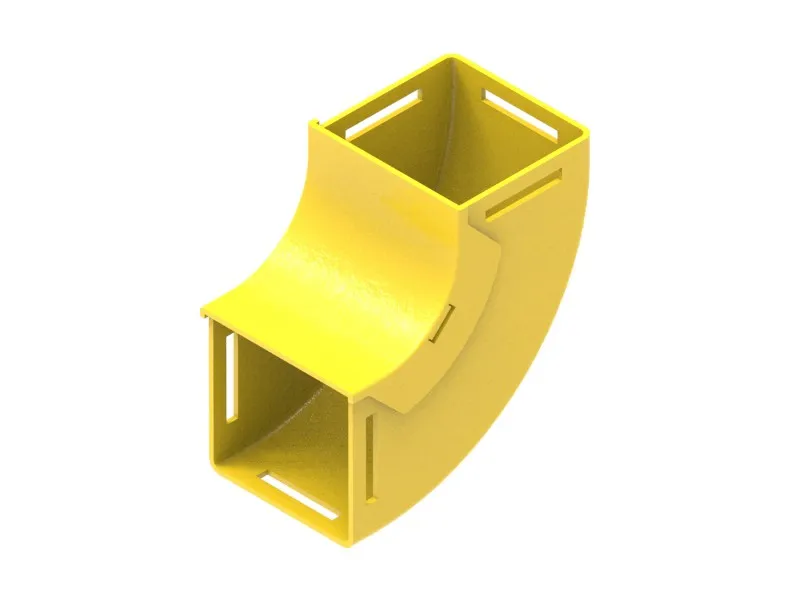

50mm Elbow 90° Up

 0,00

• Clips straight into joiner
• Tough, fire retardant material
• Joiners (Part No: TC1279-73); available separately
• Purchase by the unit

Out of stock

SKU: TC1279-143A Categories: , , Brand:

Description

The 50mm up elbow assembly is used to provide a vertical right-angled bend with standard 50mm duct. It provides a simple method for directing optical fibre cords between different levels, and has an internal cover so that fibre cords within the elbow are easily accessed. It uses standard joiners (Part No: TC1279-73); which provide smooth & strong joints.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically rising
  • Angle: 90°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 50 Millimetre
  • Suitable for cable tray width: 50 Millimetre
  • Material thickness: 2 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 120 mm
  • Height: 60 mm
  • Depth: 210 mm
  • Weight: 0.048 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 50mm up elbow assembly is used to provide a vertical right-angled bend with standard 50mm duct. It provides a simple method for directing optical fibre cords between different levels, and has an internal cover so that fibre cords within the elbow are easily accessed. It uses standard joiners (Part No: TC1279-73); which provide smooth & strong joints.

Attachments
