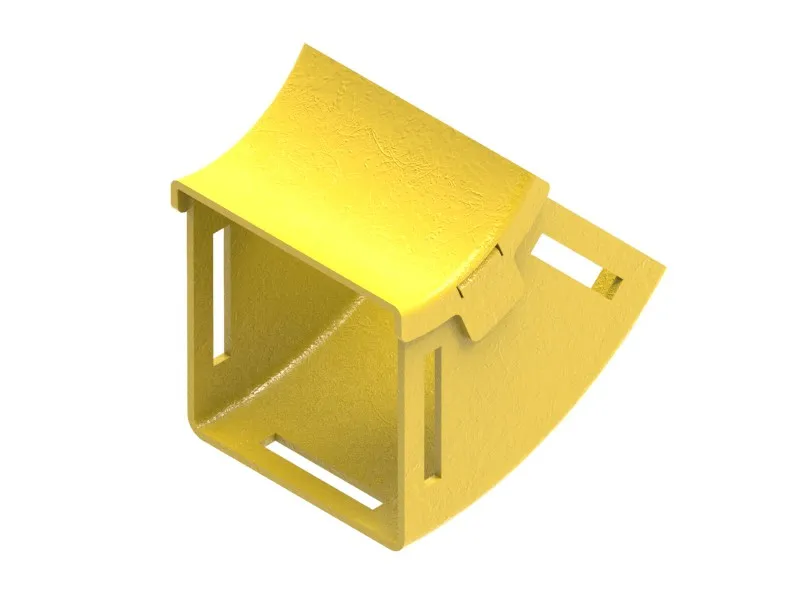

50mm 45° Up Elbow Assembly

 0,00

• Provides fibre access and retrofit options
• Clips straight into a 50 mm joiner (Part No: TC1279-73); which are supplied separately
• Tough, fire retardant material
• Purchase by the unit

Out of stock

SKU: TC1279-143-45A Categories: , , Brand:

Description

This 45-degree up elbow is a 50-mm angled lead off with an internal lid. This allows new optical fibre cords to be installed within the elbow and existing fibre cords removed, where necessary. It is usually used where an angular 50 mm duct feed off, or an alignment adjustment is needed. There are two 50-mm outlets, which use standard joiners (Part No: TC1279-73).

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically rising
  • Angle: 45°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 50 Millimetre
  • Suitable for cable tray width: 50 Millimetre
  • Material thickness: 2 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 100 mm
  • Height: 60 mm
  • Depth: 210 mm
  • Weight: 0.038 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

This 45-degree up elbow is a 50-mm angled lead off with an internal lid. This allows new optical fibre cords to be installed within the elbow and existing fibre cords removed, where necessary. It is usually used where an angular 50 mm duct feed off, or an alignment adjustment is needed. There are two 50-mm outlets, which use standard joiners (Part No: TC1279-73).

Attachments
