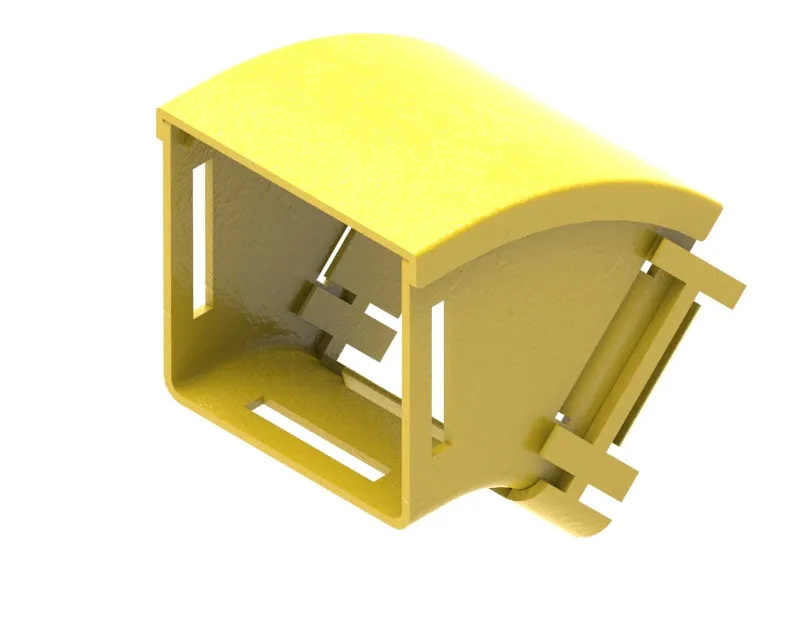

50mm 45° Down Elbow Assembly

 0,00

• Provides fibre access and retrofit options
• Has a removable cover
• Clips straight into a standard joiner, (Part No: TC1279-73); two supplied
• Tough, fire retardant material
• Purchase by the unit

Out of stock

SKU: TC1279-87-45A Categories: , , Brand:

Description

This 45-degree down elbow is a 50-mm angled lead off with an external lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 50-mm outlets, which use standard joiners (Part No: TC1279-73). Two standard joiners are supplied.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically descending
  • Angle: 45°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 50 Millimetre
  • Suitable for cable tray width: 50 Millimetre
  • Material thickness: 2 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 70 mm
  • Height: 70 mm
  • Depth: 55 mm
  • Weight: 0.025 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

This 45-degree down elbow is a 50-mm angled lead off with an external lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 50-mm outlets, which use standard joiners (Part No: TC1279-73). Two standard joiners are supplied.

Attachments
