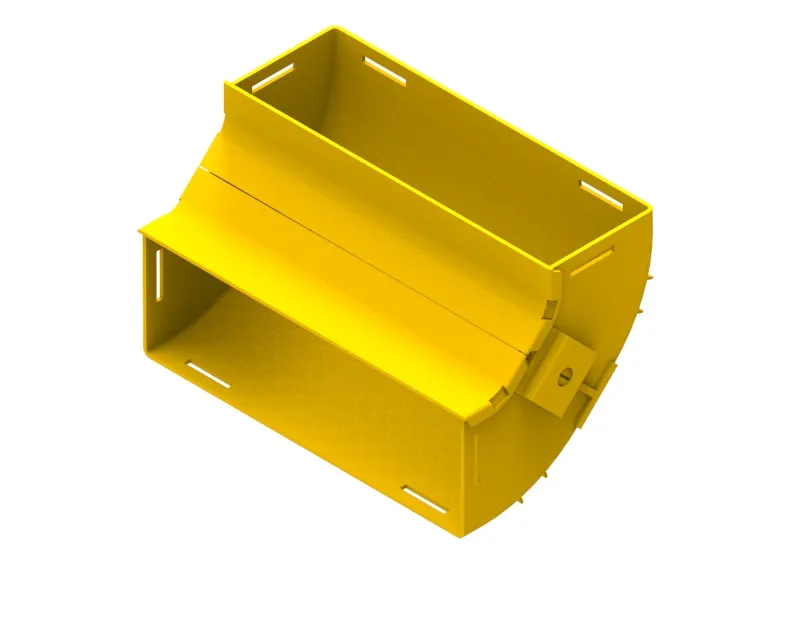

300mm 90° Up Elbow Assembly

 0,00

• Provides fibre access and retrofit options
• Clips straight into joiner, Part No: TC1279-287A (one supplied)
• Includes covers: 2 x Part No: TC1279-284
• Ribs included for extra strength
• Tough fire retardant material
• Slotless Joiners (Part No: TC1279-287A), available separately
• Purchase by the unit

Out of stock

SKU: TC1279-298KIT Categories: , , Brand:

Description

The 90° UP elbow is a 300mm vertical lead off with an internal lid, so that cables within the elbow can be accessed. This is usually used where cables are to be installed vertically. This assembly is made up of: 2 x Part No: TC1279-283A and 1 x Part No: TC1279-287A. There are two 300mm outlets, which use slotless joiners (Part No. TC1279-287A), that are available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically rising
  • Angle: 90°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 300 Millimetre
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 320 mm
  • Height: 135 mm
  • Depth: 260 mm
  • Weight: 0.73 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 90° UP elbow is a 300mm vertical lead off with an internal lid, so that cables within the elbow can be accessed. This is usually used where cables are to be installed vertically. This assembly is made up of: 2 x Part No: TC1279-283A and 1 x Part No: TC1279-287A. There are two 300mm outlets, which use slotless joiners (Part No. TC1279-287A), that are available separately.
