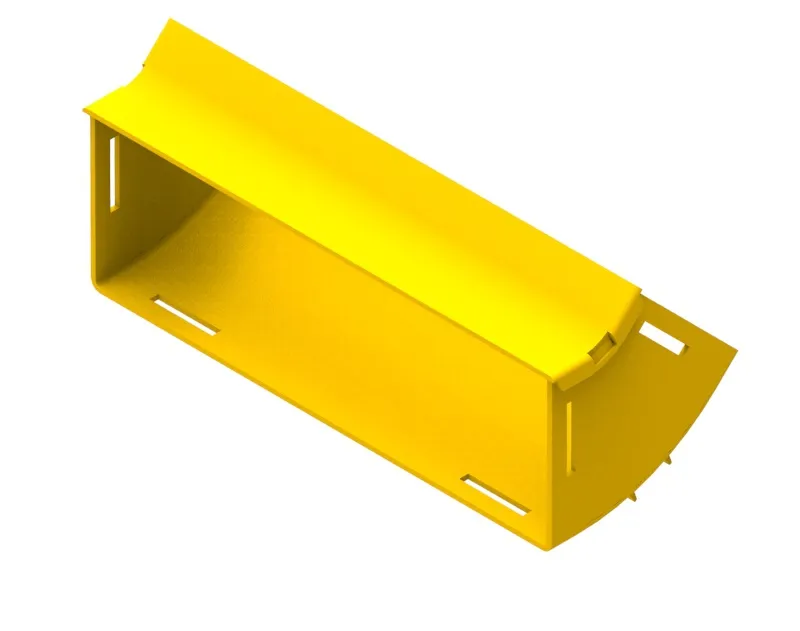

300mm 45° Up Elbow Assembly

 0,00

• Provides fibre access and retrofit options
• Clips straight into a slotless joiner (Part No: TC1279-287A); which is available separately
• Includes cover, Part No: TC1279-284
• Ribs included for extra strength
• Tough, fire retardant material
• Also, available without cover, as Part No: TC1279-283
• Purchase by the unit

Out of stock

SKU: TC1279-283A Categories: , , Brand:

Description

The 45° up elbow is a 300mm vertical lead off with an internal lid, so that new fibres can be installed within the elbow and existing fibres removed, where necessary. This is usually used where cables may be already installed and either an angular duct feed off or an alignment adjustment is needed. There are two 300mm outlets, which use slotless joiners (Part No: TC1279-287A); which are available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically rising
  • Angle: 45°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 300 Millimetre
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 140 mm
  • Height: 120 mm
  • Depth: 310 mm
  • Weight: 0.323 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 45° up elbow is a 300mm vertical lead off with an internal lid, so that new fibres can be installed within the elbow and existing fibres removed, where necessary. This is usually used where cables may be already installed and either an angular duct feed off or an alignment adjustment is needed. There are two 300mm outlets, which use slotless joiners (Part No: TC1279-287A); which are available separately.
