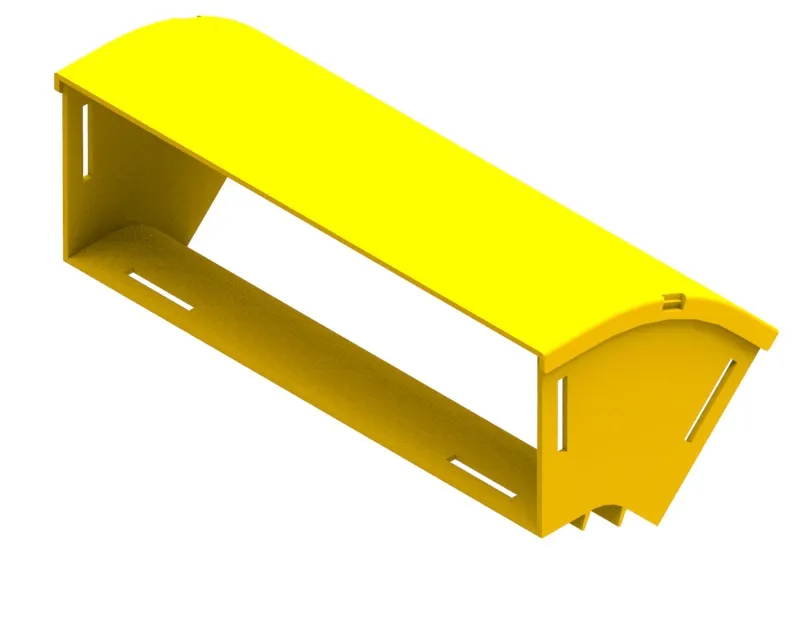

300mm 45° Down Elbow Assembly

 0,00

• Provides fibre access and retrofit options
• Clips straight into joiner; (Part No: TC1279-287A); available separately
• Includes cover, Part No: TC1279-286
• Tough, fire retardant material
• Ribs included for extra strength
• Also, available without cover, as Part No: TC1279-285
• Purchase by the unit

Out of stock

SKU: TC1279-285A Categories: , , Brand:

Description

This 300mm down elbow is a 45° angled lead off with an external lid, so that new fibres can be installed within the elbow and existing fibres removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 300mm outlets, which use slotless joiners (Part No. TC1279-287A); which are available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically descending
  • Angle: 45°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 300 Millimetre
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 110 mm
  • Height: 310 mm
  • Depth: 160 mm
  • Weight: 0.36 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

This 300mm down elbow is a 45° angled lead off with an external lid, so that new fibres can be installed within the elbow and existing fibres removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 300mm outlets, which use slotless joiners (Part No. TC1279-287A); which are available separately.
