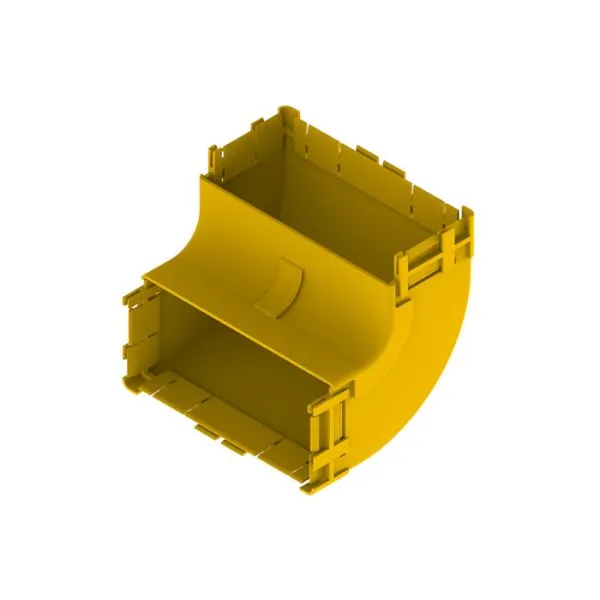

220mm 90° Up Elbow Assembly

 0,00

• Provides easy access for fibre cords and allows fibre cords to be retrofitted
• Clips straight into either: standard joiners (Part No: TC1279-27) or slotless joiners (Part No: TC1279-250A); which are available separately
• Tough, fire retardant material
• Standard joiners (TC1279-25) included. (Alternative slotless joiners (Part No: TC1279-250A) can be used)
• Purchase by the unit

Out of stock

SKU: TC1279-125A Categories: , , Brand:

Description

The 90° up elbow is a 220mm vertical lead off, with an internal lid, so that optical fibre cords within the elbow can be accessed. This is usually installed where fibre cords are to be installed vertically. There are two 220mm outlets, which use either: standard joiners (Part No: TC1279-27) or slotless joiners (Part No: TC1279-250A); that are available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically rising
  • Angle: 90°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 220 Millimetre
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 230 mm
  • Height: 150 mm
  • Depth: 280 mm
  • Weight: 0.599 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 90° up elbow is a 220mm vertical lead off, with an internal lid, so that optical fibre cords within the elbow can be accessed. This is usually installed where fibre cords are to be installed vertically. There are two 220mm outlets, which use either: standard joiners (Part No: TC1279-27) or slotless joiners (Part No: TC1279-250A); that are available separately.

Attachments
