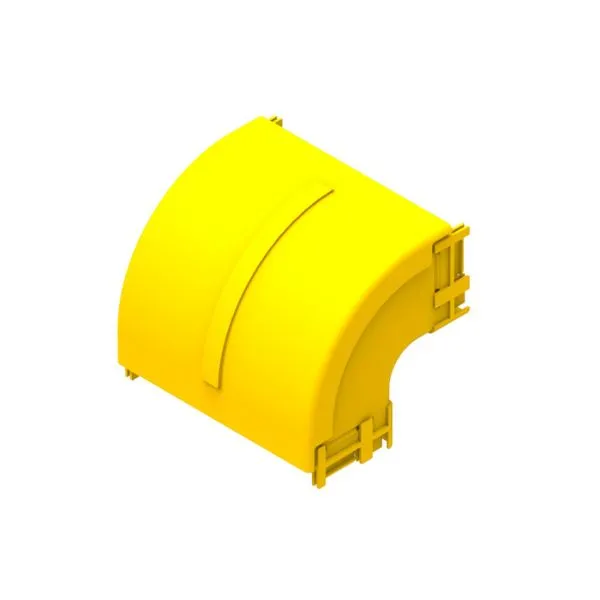

220mm 90° Dowm Elbow Assembly

 0,00

Provides fibre access and retrofit options
• Has a removable cover (Part No: TC1279‐122)
• Clips straight into a joiner
• Standard joiners (Part No: TC1279‐25) or slotless joiners (TC 1279‐250A); supplied
• Tough, fire retardant material
• Purchase by the unit

Out of stock

SKU: TC1279-123A Categories: , , Brand:

Description

This 90° down elbow is a 220mm vertical drop off with an external lid, so that optical fibre cords installed within the elbow can be accessed. This is usually installed where optical fibre cords are to be dropped off below. There are two 220mm outlets, which use either: standard joiners (Part No: TC1279‐25) or slotless joiners (TC 1279‐250A); are supplied.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically descending
  • Angle: 90°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 220 Millimetre
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 166 mm
  • Height: 166 mm
  • Depth: 255 mm
  • Weight: 0.56 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

This 90° down elbow is a 220mm vertical drop off with an external lid, so that optical fibre cords installed within the elbow can be accessed. This is usually installed where optical fibre cords are to be dropped off below. There are two 220mm outlets, which use either: standard joiners (Part No: TC1279‐25) or slotless joiners (TC 1279‐250A); are supplied.
