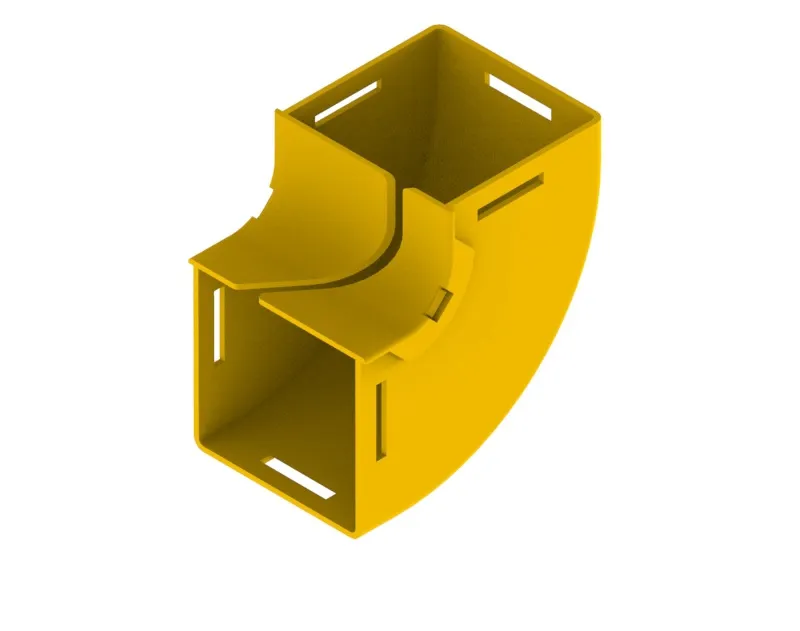

100mm 90° Up Elbow Assembly

 0,00

• Provides easy access for fibre cords and allows fibre cords to be retrofitted
• Clips straight into either: a standard joiner (Part No. TC1279-27) or a slotless joiner (Part No: TC1279-248A);
• which are available separately
• Tough, fire retardant material
• Purchase by the unit

1 in stock

SKU: TC1279-113R Categories: , ,

Description

The 90° up elbow is a 100mm vertical lead off with an internal slot, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. This is usually used where optical fibre cords are to be installed vertically. There are two 100mm outlets which use either: standard joiners (Part No. TC1279-27) or slotless joiners (Part No: TC1279-248A); that are available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically rising
  • Angle: 90°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 100 Millimetre
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 175 mm
  • Height: 175 mm
  • Depth: 106 mm
  • Weight: 0.3 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 90° up elbow is a 100mm vertical lead off with an internal slot, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. This is usually used where optical fibre cords are to be installed vertically. There are two 100mm outlets which use either: standard joiners (Part No. TC1279-27) or slotless joiners (Part No: TC1279-248A); that are available separately.

Attachments
