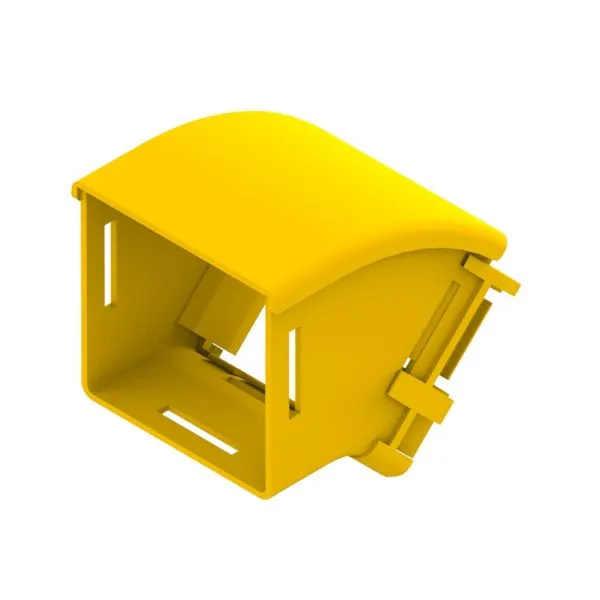

100mm 45° Vertical Elbow Down

100mm 45° Vertical Elbow Down

€ 0,00

Provides easy access for optical fibre cords, and allows optical fibre cords to be retrofitted
• Removable cover supplied
• A special, modified, slotless joiner provides a smooth transition for optical fibre cords
• Clips straight into either a: standard joiner (Part No. TC1279-27) or a slotless joiner (Part No: TC1279-248A); which are available separately
• Tough, fire retardant material
• Purchase by the unit

1 in stock

SKU: TC1279-111-45A Categories: , ,

Description

This 100mm down elbow is a 45° angled lead off with an external lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 100mm outlets. One is equipped with a modified slotless joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner (Part No. TC1279-27) or a slotless joiner (Part No: TC1279-248A); that are available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically descending
  • Angle: 45°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 100 Millimetre
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 130 mm
  • Height: 115 mm
  • Depth: 112 mm
  • Weight: 0.176 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

This 100mm down elbow is a 45° angled lead off with an external lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 100mm outlets. One is equipped with a modified slotless joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner (Part No. TC1279-27) or a slotless joiner (Part No: TC1279-248A); that are available separately.

Attachments
