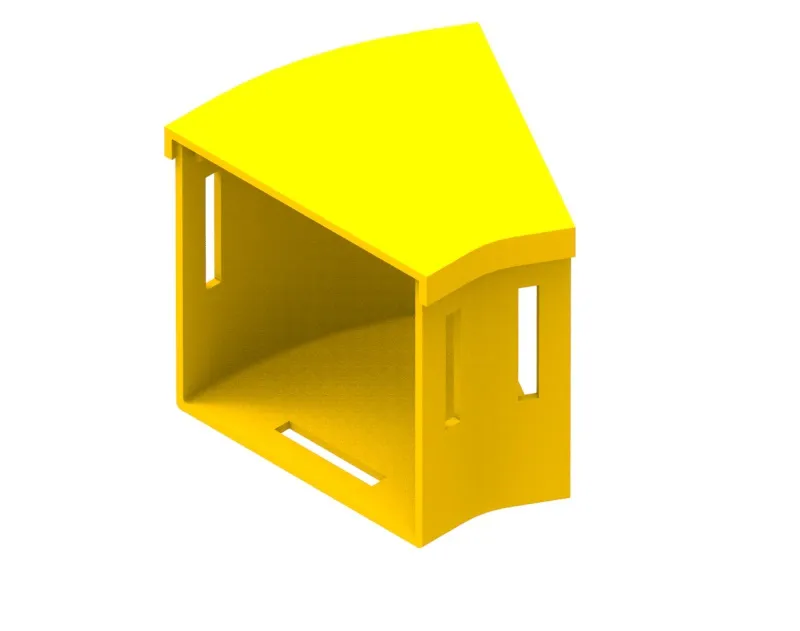

100mm 30D Elbow Ass.Horizontal

100mm 30D Elbow Ass.Horizontal

€ 0,00

• Provides a 30° bend
• Includes cover
• Clips straight into either a: standard joiner (Part No: TC1279-27) or a slotless joiner (Part No: TC1279-248A); which are available separately
• Tough, fire retardant material
• Purchase by the unit

Out of stock

SKU: TC1279-47A Categories: , , Brand:

Description

This elbow provides a method of diverting the 100mm Duct System around objects. It can be used with a tee to feed a duct at 30° to the main system. The elbow can be used in pairs to align ducts and other components with an offset. The elbow is connected to the 100mm duct using either a: standard joiner (Part No: TC1279-27, Telstra Part No: S353/514) or a slotless joiner (Part No: TC1279-248A), which are available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Horizontal
  • Angle: 30°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 100 Millimetre
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 107 mm
  • Height: 105 mm
  • Depth: 115 mm
  • Weight: 0.106 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

This elbow provides a method of diverting the 100mm Duct System around objects. It can be used with a tee to feed a duct at 30° to the main system. The elbow can be used in pairs to align ducts and other components with an offset. The elbow is connected to the 100mm duct using either a: standard joiner (Part No: TC1279-27, Telstra Part No: S353/514) or a slotless joiner (Part No: TC1279-248A), which are available separately.
