Side Drop Off 50 mm
Side Drop Off 50 mm

Side Drop Off 50 mm

€ 0,00

• Clips straight into notched ducting.
• Fits directly to tubular or split convoluted tube (Part No: TC1279‐26 or TC1279‐350); available separately
• Tough, fire retardant material
• No joiners are necessary.
• Purchase by the unit

Out of stock

SKU: TC1279-41A Categories: , , Brand:

Description

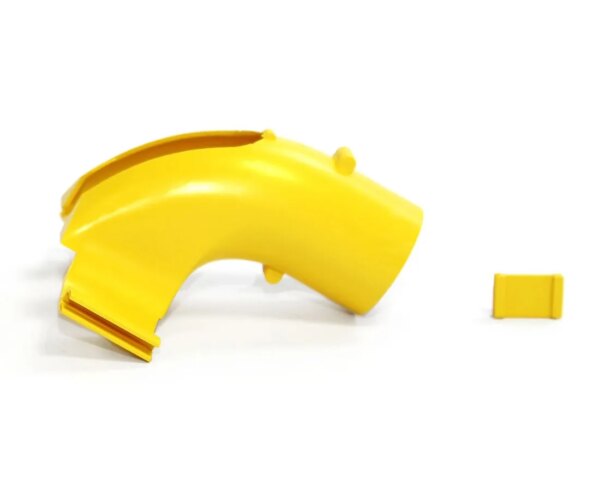

The drop off assembly is used to provide a safe exit for fibre equipment below or above 300, 220, 100, 100 x 50 & 50mm ducting. It fits into a cut out provided by the cut out Tool (Part No: TC1279‐50KIT, Telstra No: 035300396) and is used with RAMP OFF (Part No. TC1279‐42, Telstra No: 035300659), which also clips into the same cut out (when fitting to 300, 220 & 100mm ducting). It provides a tubular exit point over which a 44mm ID flexible or split convoluted tube (Part No: TC1279‐26 or TC1279‐350) can be fitted.

Product features

  • ETIM Code: EC000858
  • ETIM Class: Drop-out plate for cable ladder
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 110 mm
  • Height: 85 mm
  • Depth: 100 mm
  • Weight: 0.05 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Model: Drop-off Solutions
  • Working temperature: -20 - 70 Degrees celsius

Description

The drop off assembly is used to provide a safe exit for fibre equipment below or above 300, 220, 100, 100 x 50 & 50mm ducting. It fits into a cut out provided by the cut out Tool (Part No: TC1279‐50KIT, Telstra No: 035300396) and is used with RAMP OFF (Part No. TC1279‐42, Telstra No: 035300659), which also clips into the same cut out (when fitting to 300, 220 & 100mm ducting). It provides a tubular exit point over which a 44mm ID flexible or split convoluted tube (Part No: TC1279‐26 or TC1279‐350) can be fitted.
