Description

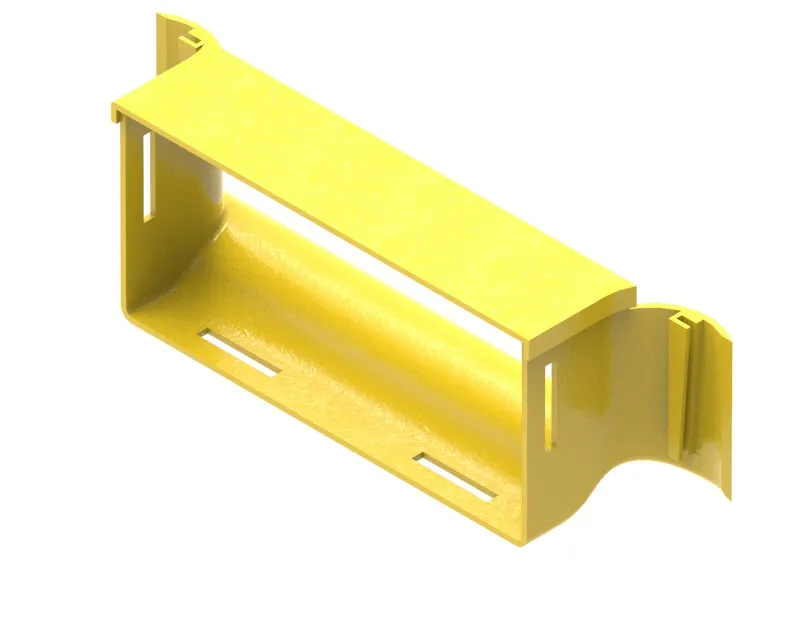

The break out assembly is used to provide a safe exit for optical fibre cord/s to equipment, at any point in 100, 220 or 300mm ducting system. It is normally used to provide a break out in existing Duct Systems, and clips straight into a cut- out, 2 cuts wide, provided by the cut-out Tool (Part No: TC1279-231KIT), or using the cut-out jig (Part No: TC1279-483A); available separately. When used as described, it provides a 220mm outlet; to which any standard 220mm part can be fitted (using either: the standard joiner, Part No: TC1279-25) or the slotless joiner Part No: TC1279-250A); that are available separately. It can also be used with vertical duct to feed patch cords down to a rack. (Used as a Trumpet Outlet).
