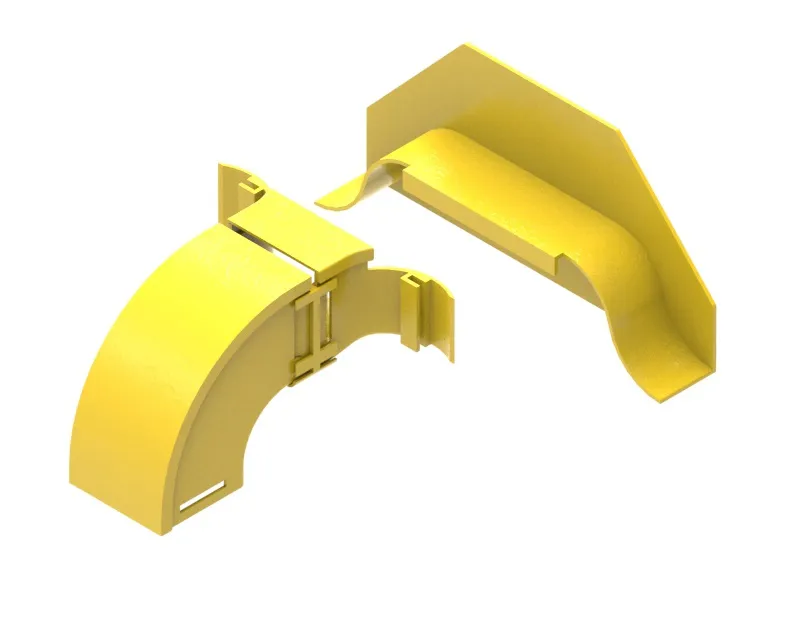

50mm Break Out Kit For 100mm & 200mm Duct
50mm Break Out Kit For 100mm & 200mm Duct

50mm Break Out Kit For 100mm & 200mm Duct

€ 0,00

• Fits into the standard cut out in 300, 220 & 100mm ducting
• Includes: ramp off (Part No: TC1279-42); break out adaptor assembly (Part No; TC1279-93A); joiner (Part No: TC1279-73); and a 90° down elbow (Part No: TC1279-87A)
• Fits directly to 50mm slotted duct (Part No’s: TC1279-81SLA or TC1279-81SLXA) or straight duct (Part No: TC1279-81XA); using a standard joiner. These items are available separately.
• Tough, fire retardant material
• Additional joiners (Part No: TC1279-73) are available separately
• Purchase by the unit

Out of stock

SKU: TC1279-93KIT Categories: , , Brand:

Description

The break out Kit is used to provide a safe exit for optical fibre cords at any point in 300, 220 & 100mm ducting, to 50mm duct, feeding in a vertical plane. It clips straight into a cut out provided by the cut-out Tool (Part No: TC1279-50KIT), or cut-out jig (Part No: TC1279-483A) and provides a 90° down elbow, over which a 50mm slotted duct (Part No’s: TC1279-81SLA or TC1279-81SLXA) or straight duct (Part No: TC1279-81XA) can be fitted, using a 50mm standard joiner (Part No: TC1279-73). These items are available separately. A ramp off is also provided to maintain fibre bending radii, up to the break-out.

Attachments

Product features

  • ETIM Code: EC000858
  • ETIM Class: Drop-out plate for cable ladder
  • Suitable for cable ladder width: 100 Millimetre
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 140 mm
  • Height: 70 mm
  • Depth: 210 mm
  • Weight: 0.133 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Model: Drop-off Solutions
  • Working temperature: -20 - 70 Degrees celsius

Description

The break out Kit is used to provide a safe exit for optical fibre cords at any point in 300, 220 & 100mm ducting, to 50mm duct, feeding in a vertical plane. It clips straight into a cut out provided by the cut-out Tool (Part No: TC1279-50KIT), or cut-out jig (Part No: TC1279-483A) and provides a 90° down elbow, over which a 50mm slotted duct (Part No’s: TC1279-81SLA or TC1279-81SLXA) or straight duct (Part No: TC1279-81XA) can be fitted, using a 50mm standard joiner (Part No: TC1279-73). These items are available separately. A ramp off is also provided to maintain fibre bending radii, up to the break-out.

Attachments
