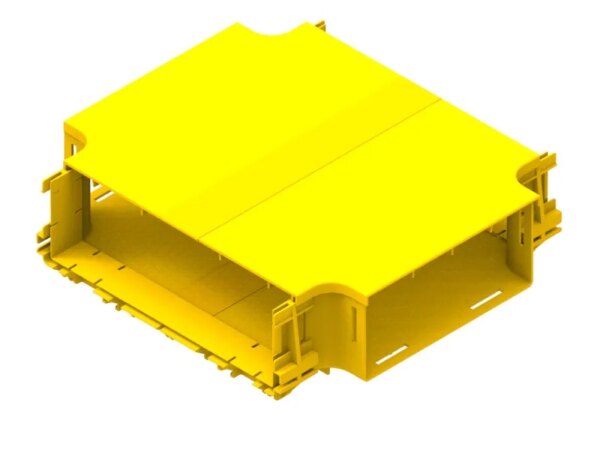

300mm To 220mm Cross Assembly

300mm To 220mm Cross Assembly

€ 0,00

• Includes cover (Part No. TC 1279- 332} and clips straight into joiner
• Tough, fire retardant material
• 2x slotless joiners for 220mm x 100mm duct (Part No’s: TC1279-250A, Telstra No: 035301308) are included
• Joiners for 300mm x 100mm duct, either: standard joiner (Part No:TC1279-320KIT) or a slotless joiner (Part No:TC1279-287A ); available separately
• Purchase as a unit

1 in stock

SKU: TC1279-331A Categories: , ,

Description

This cross connector is used to establish a right, angled intersection between 300mm x 100mm and 220mm x 100mm duct. i.e. 2 arms of the connector are connected to both 300mm and 220mm duct, or other components. Included are 2x 220 mm x 100mm slotless duct joiners (Part No: TC1279-250A, Telstra No: 035301308). Joiners for 300mm x 100mm duct; either: standard joiners (Part No: TC1279-320KIT) or slotless joiners (Part No: TC1279-287A); are available separately.
NOTE: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector.

Attachments

Product features

  • ETIM Code: EC001542
  • ETIM Class: Cross piece for cable tray
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 300 Millimetre
  • Inner radius: 30 Millimetre
  • NATO-mounting holes: No
  • For connection with screws: No
  • For screwless connection: Yes
  • Model: Crosses
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Material quality: Other
  • Surface protection: Other
  • Colour: Yellow
  • RAL-number: 1026
  • Variant: yellow
  • Width: 110 mm
  • Height: 445 mm
  • Depth: 320 mm
  • Weight: 1.35 kg
  • Working temperature: -20 - 70 Degrees celsius

Description

This cross connector is used to establish a right, angled intersection between 300mm x 100mm and 220mm x 100mm duct. i.e. 2 arms of the connector are connected to both 300mm and 220mm duct, or other components. Included are 2x 220 mm x 100mm slotless duct joiners (Part No: TC1279-250A, Telstra No: 035301308). Joiners for 300mm x 100mm duct; either: standard joiners (Part No: TC1279-320KIT) or slotless joiners (Part No: TC1279-287A); are available separately.
NOTE: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector.

Attachments
