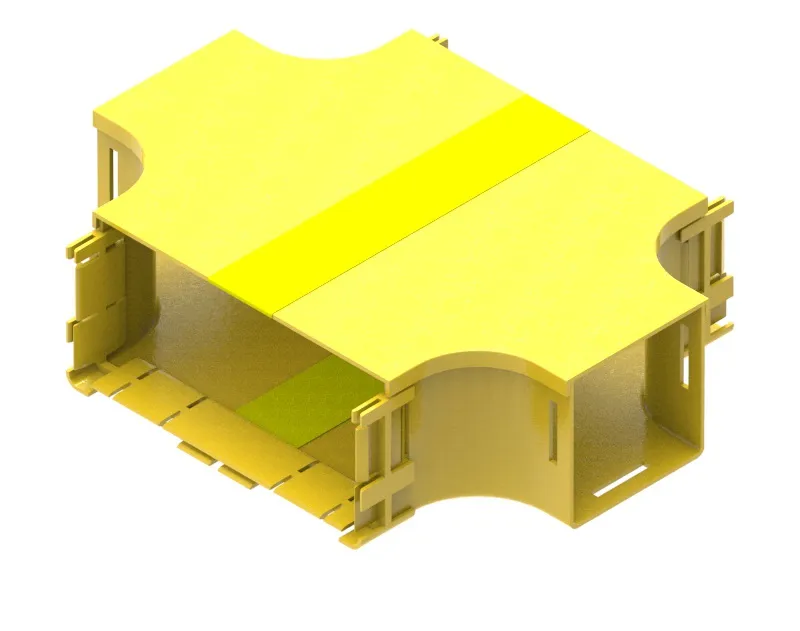

220 X 100mm Connector Assembly

220 X 100mm Connector Assembly

€ 0,00

• Includes cover (Part No. TC 1279-66) clips straight into joiner
• Tough, fire retardant material
• Joiners (Part No’s: TC1279-25 & TC1279-27, Telstra No’s: 035300515 & 035300514 or TC1279-250A and TC1279-248A); available separately (for connection to 220mm & 100mm ducting)
• Purchase as a unit

1 in stock

SKU: TC1279-65A Categories: , ,

Description

This cross connector is used to establish a right, angled intersection between 220mm and 100mm duct. i.e. 2 arms of the connector are connected to both 220mm and 100mm duct, or other components, using either: standard joiners (Part No: TC1279-25 and TC1279-27,Telstra No’s: 035300515 & 035300514) or slotless joiners (Part No: TC1279-250A and TC1279-248A).
NOTE: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector.

Attachments

Product features

  • ETIM Code: EC001542
  • ETIM Class: Cross piece for cable tray
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 220 Millimetre
  • Inner radius: 30 Millimetre
  • NATO-mounting holes: No
  • For connection with screws: No
  • For screwless connection: Yes
  • Model: Crosses
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Material quality: Other
  • Surface protection: Other
  • Colour: Yellow
  • RAL-number: 1026
  • Variant: yellow
  • Width: 250 mm
  • Height: 105 mm
  • Depth: 370 mm
  • Weight: 0.78 kg
  • Working temperature: -20 - 70 Degrees celsius

Description

This cross connector is used to establish a right, angled intersection between 220mm and 100mm duct. i.e. 2 arms of the connector are connected to both 220mm and 100mm duct, or other components, using either: standard joiners (Part No: TC1279-25 and TC1279-27,Telstra No’s: 035300515 & 035300514) or slotless joiners (Part No: TC1279-250A and TC1279-248A).
NOTE: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector.

Attachments
