Description

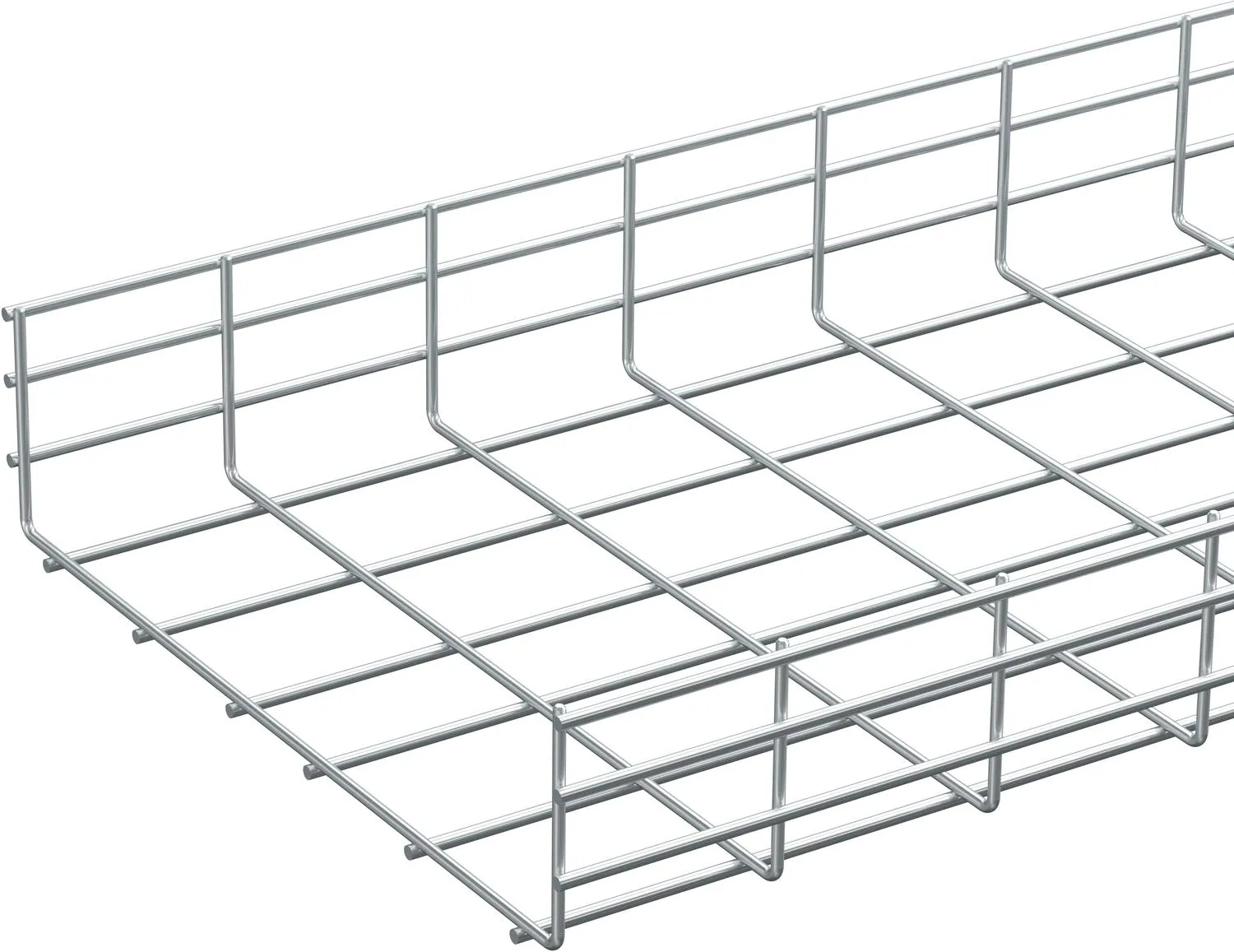

Defem – mesh tray U-shape – 422/110 – wire dia 5/6 mm – 2.5 m – stainless steel AISI304L
Do you have any questions or need more information about a product?
Our experts are happy to help you!
Mesh tray 422/110×5/6 2.5m AISI304L
€ 0,00
Defem – mesh tray U-shape – 422/110 – wire dia 5/6 mm – 2.5 m – stainless steel AISI304L
Out of stock
Product features
- Model: Mesh Tray
- ETIM Code: EC000853
- ETIM Class: Mesh cable tray
- Profile shape: U-shape
- Width: 420 mm
- Height: 110 mm
- Length: 2500 Millimetre
- Working length: 2500 Millimetre
- Diameter longitudinal wire: 5 Millimetre
- Diameter transverse wire: 5 Millimetre
- Usable cross section: 18000 Square millimetre
- Integrated partition: None
- Type of connection: Screwed
- Suitable for circuit integrity: No
- Material: Stainless steel
- Material quality: Stainless steel 304 (1.4301)
- Surface protection: Untreated
- Colour: Other
- Weight: 2.73 kg
- Load test type according to IEC 61537: Type I
- Working temperature: -40 - 120 Degrees celsius
- Variant: SS304
- Depth: 2500 mm
