Description

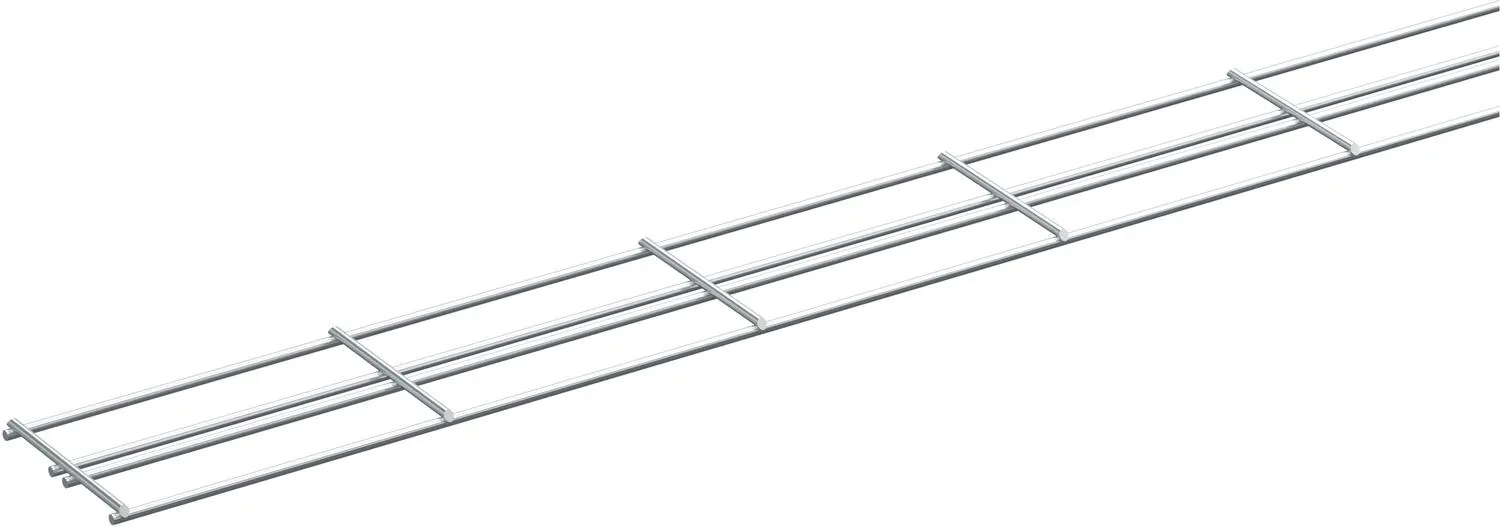

Defem – mini mesh tray I-shape – 60/6 – wire dia 3 mm – 2 m – steel electro-galvanized
Do you have any questions or need more information about a product?
Our experts are happy to help you!
Mini mesh tray B30-I 60/6×3 2m EG
€ 0,00
Defem – mini mesh tray I-shape – 60/6 – wire dia 3 mm – 2 m – steel electro-galvanized
Out of stock
Product features
- Model: Mesh Tray
- ETIM Code: EC000853
- ETIM Class: Mesh cable tray
- Profile shape: I-shape
- Width: 60 mm
- Height: 6 mm
- Length: 2000 Millimetre
- Working length: 2000 Millimetre
- Diameter longitudinal wire: 3 Millimetre
- Diameter transverse wire: 3 Millimetre
- Usable cross section: 230 Square millimetre
- Integrated partition: None
- Type of connection: Screwed
- Suitable for circuit integrity: No
- Material: Steel
- Material quality: Other
- Surface protection: Galvanic/electrolytic zinc plated
- Colour: Other
- Weight: 0.26 kg
- Working temperature: -40 - 120 Degrees celsius
- Variant: EG
- Depth: 2000 mm
Description
Defem – mini mesh tray I-shape – 60/6 – wire dia 3 mm – 2 m – steel electro-galvanized
