Description

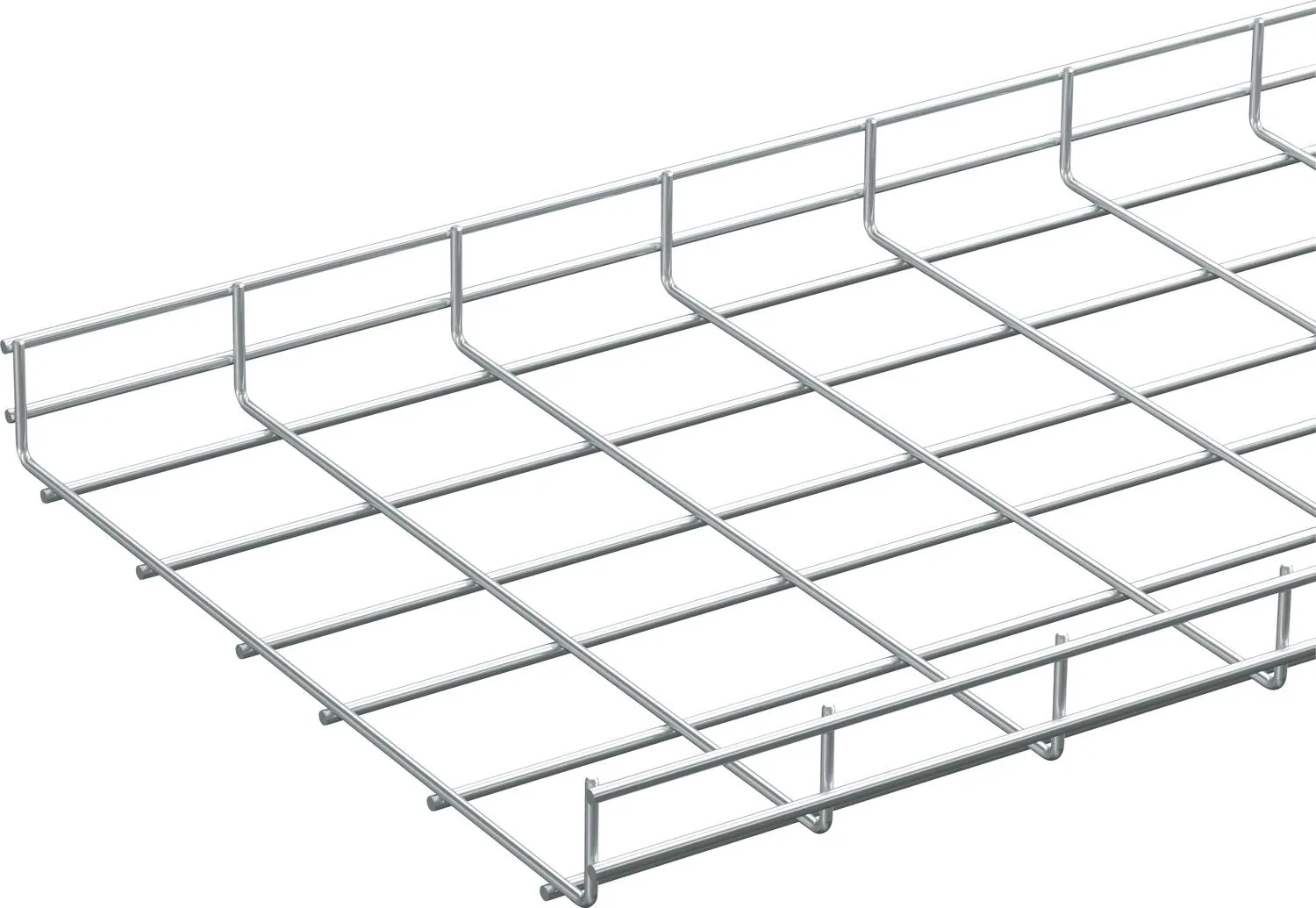

Defem – mesh tray U-shape – 422/60 – wire dia 5/6 mm – 2.5 m – steel electro-galvanized
Do you have any questions or need more information about a product?
Our experts are happy to help you!
Mesh tray 422/60×5/6 2.5m EG
€ 0,00
Defem – mesh tray U-shape – 422/60 – wire dia 5/6 mm – 2.5 m – steel electro-galvanized
Out of stock
Product features
- Model: Mesh Tray
- ETIM Code: EC000853
- ETIM Class: Mesh cable tray
- Profile shape: U-shape
- Width: 422 mm
- Height: 60 mm
- Length: 2500 Millimetre
- Working length: 2500 Millimetre
- Diameter longitudinal wire: 5 Millimetre
- Diameter transverse wire: 5 Millimetre
- Usable cross section: 30000 Square millimetre
- Integrated partition: None
- Type of connection: Screwed
- Suitable for circuit integrity: Yes
- Material: Steel
- Material quality: Other
- Surface protection: Galvanic/electrolytic zinc plated
- Colour: Other
- Weight: 3.03 kg
- Load test type according to IEC 61537: Type I
- Working temperature: -40 - 120 Degrees celsius
- Variant: EG
- Depth: 2500 mm
Description
Defem – mesh tray U-shape – 422/60 – wire dia 5/6 mm – 2.5 m – steel electro-galvanized
