11.6" All-in-One Panel PC with Rockchip 3399 processor
11.6" All-in-One Panel PC with Rockchip 3399 processor

11.6″ All-in-One Panel PC with Rockchip 3399 processor

€ 0,00

11.6″ All-in-One Panel PC with Rockchip 3399 processor

Out of stock

SKU: PPC-112W Categories: , , Brand:

Description

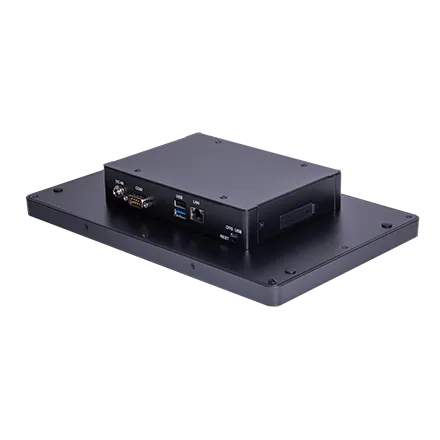

PPC-112W is 11.6″ All-in-One PPC with Rockchip RK3399 processor with Android or Debian OS pre-installed. Featuring 11.6″ wide screen display and 10 points Pcap multi-touch, IP65 rated front panel, VESA or panel mouting support, PPC-112W provides friendly experience and reliable integration possibility. External 2 x USB 2.0/3.0,1 x RS-232 expands more flexible connection. Pre-installed Android or Debian, PPC-112W helps customer visiting web information quickly in various IoT applications.

Features:
True flat wide display screen with Pcap multi-touch
Embedded Rockchip RK3399 processor, Dual-core Cortex-A72 up to 1.8GHz and Quad-core Cortex-A53 up to 1.4GHz
Onboard 4GB LPDDR4-1333 memory, 32GB eMMC NAND Flash
IP65 rated front panel protection
Supports VESA 100 and panel mounting(optional)
Supports Android and Debian

Attachments

Product features

  • Model: Touch Panel Computer
  • ETIM Code: EC001414
  • ETIM Class: Panel PC
  • Supply voltage DC: 12 - 12 Volt
  • Voltage type (supply voltage): DC
  • Number of HW-interfaces industrial Ethernet: 1
  • Number of HW-interfaces RS-232: 1
  • Number of HW-interfaces USB: 5
  • Supporting protocol for other bus systems: Yes
  • Type of display: TFT
  • Screen diagonal: 11.6 Inch
  • Number of pixels, horizontal: 1366
  • Number of pixels, vertical: 768
  • Preinstalled operating system: Other
  • Max. main memory: 4000 Megabyte
  • Integrated keyboard: No
  • With touch screen: Yes
  • Mouse-cursor control integrated: No
  • Degree of protection (IP), front side: IP65
  • Operating temperature: 0 - 50 Degrees celsius
  • With other storage media: Yes
  • Customer individual configuration: Yes
  • Number of free PCI-slots: 1
  • Suitable for rail mounting: No
  • Wall mounting/direct mounting: Yes
  • Front built-in possible: Yes
  • Rack-assembly possible: No
  • Width of the front: 292 Millimetre
  • Height of the front: 187 Millimetre
  • Built-in depth: 50 Millimetre
  • Certified for UL hazardous location class II: No
  • Variant: Industrial
  • Width: 292 mm
  • Height: 187 mm
  • Depth: 50 mm
  • Weight: 1.8 kg

Description

PPC-112W is 11.6″ All-in-One PPC with Rockchip RK3399 processor with Android or Debian OS pre-installed. Featuring 11.6″ wide screen display and 10 points Pcap multi-touch, IP65 rated front panel, VESA or panel mouting support, PPC-112W provides friendly experience and reliable integration possibility. External 2 x USB 2.0/3.0,1 x RS-232 expands more flexible connection. Pre-installed Android or Debian, PPC-112W helps customer visiting web information quickly in various IoT applications.

Features:
True flat wide display screen with Pcap multi-touch
Embedded Rockchip RK3399 processor, Dual-core Cortex-A72 up to 1.8GHz and Quad-core Cortex-A53 up to 1.4GHz
Onboard 4GB LPDDR4-1333 memory, 32GB eMMC NAND Flash
IP65 rated front panel protection
Supports VESA 100 and panel mounting(optional)
Supports Android and Debian

Attachments
