Description

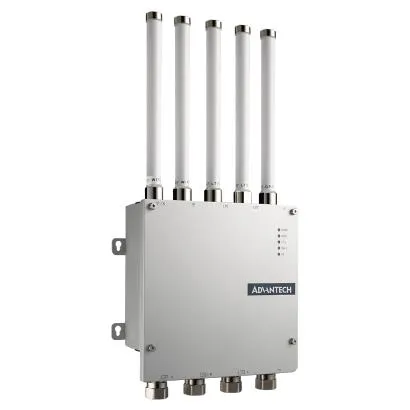

Designed for use in harsh industrial environments, UNO-430-E1H features all-around IP66-rated ingress protection and cable gland I/O connectors to provide a truly water and dust proof solution that can withstand the most demanding applications. The waterproof enclosure features a front door for easy access and maintenance as well as a cable gland that offers further ingress protection. This eliminates the need for a waterproof cabinet, cables, or wiring, which enables customers to use the UNO-430 gateway as a standalone data acquisition gateway. Moreover, with the provision of standard M.2 2230 Wi-Fi and M.2 3052/3042 5G/LTE sockets, the UNO-430 gateway offers expandable wireless connectivity for remote communication and data transfers. Furthermore, with C1D2, ATEX, and IECEx certification for explosion tolerance, UNO-430-E1H is ideal for applications in the oil & gas, mining, food & beverage, and chemicals & pharmaceuticals industries.
Features:
Intel® Atom™ E3950 quad-core processor with 8GB of DDR3L memory
IP66 rating for protection from water and dust ingress
Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F)
Built-in TPM 2.0 for hardware-based security
Reserve M.2 3042/3052 B Key, M.2 2230 E Key for Wifi, LTE & GPS expansion
Easy maintenance and installation with front door and cable gland design
C1D2, ATEX, and IECEx certification for explosion tolerance
Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
