Description

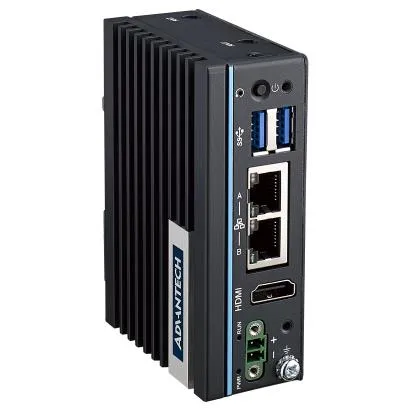

Advantech’s UNO-100 series are DIN-rail integrated controller that feature a modular design for flexible configuration according to specific usage requirements. UNO-148 V2 is equipped with an 13th Generation Intel® Core™ i Processor with 8GB DDR5 RAM, and 3 x LAN, 4 x COM, 3 x USB 3.2, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.4. The controller also supports 1 x full-size mini PCIe, 2 x M.2 M Key, 1 x M.2 E key, and 1 x nano SIM card slot for convenient expansion to satisfy diverse industrial applications. Compliant with IEC 61010-1 safety requirements for industrial use, UNO-148 V2 can be equipped with an optional second-stack extension kit that supports Advantech’s iDoor technology for integrating additional industrial Fieldbus, wireless communication, I/O, and peripheral modules.
Features:
Intel® Atom® quad-core x6413E processor
4 GB/8 GB DDR4 onboard memory
Compact, robust, fanless, cable-free design with high stability
Optimized I/O with 2 x GbE, 2 x USB, 1 x HDMI
Full-size mPCIe port onboard for flexible expansion
Built-in TPM2.0 for hardware-based security
Isolated grounding system
IEC 61010 certified for industrial applications
