Description

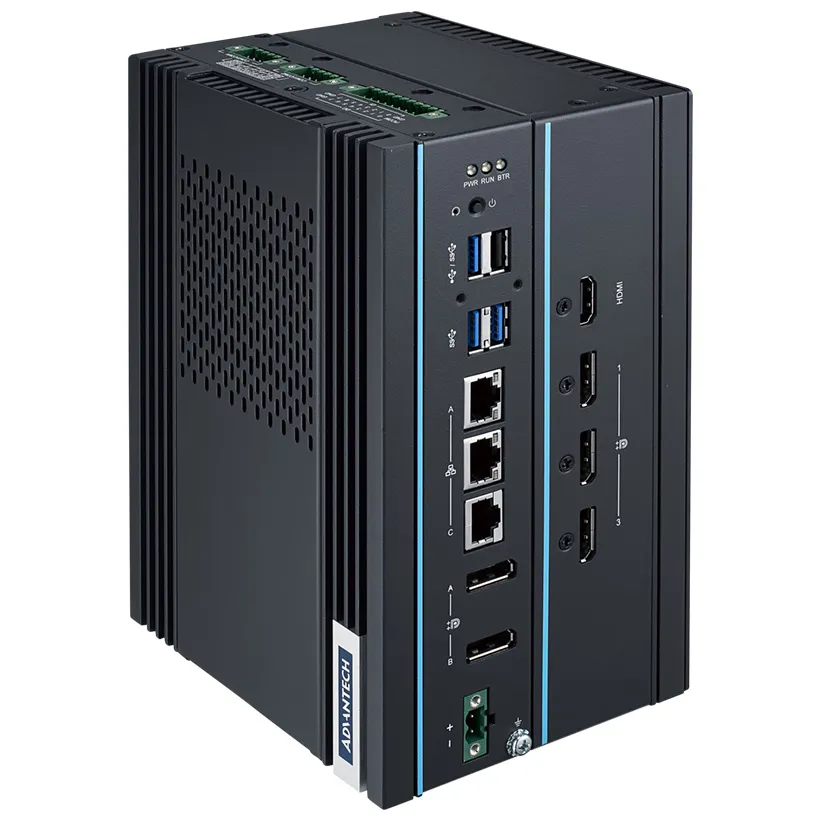

Advantech’s UNO-100 series are DIN-rail integrated controller that feature a modular design for flexible configuration according to specific usage requirements. UNO-148 V2 is equipped with an 13th Generation Intel® Core™ i Processor with 8GB DDR5 RAM, and 3 x LAN, 4 x COM, 3 x USB 3.2, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.4. The controller also supports 1 x full-size mini PCIe, 2 x M.2 M Key, 1 x M.2 E key, and 1 x nano SIM card slot for convenient expansion to satisfy diverse industrial applications. Compliant with IEC 61010-1 safety requirements for industrial use, UNO-148 V2 can be equipped with an optional second-stack extension kit that supports Advantech’s iDoor technology for integrating additional industrial Fieldbus, wireless communication, I/O, and peripheral modules.
Features:
Intel 13th Gen Core i7/i5/i3 Processor with 8GB DDR5 memory
Port isolation for 8 x DI, 8 x DO, 4 x COM
Supports 2*M.2 M key 2280 NVMe SSD storage (support RAID), and M.2E Key 2230 Wi-Fi modules
Modular design for optional iDoor extension
Onboard TPM 2.0 provides hardware-based security
IEC 61010-2 standard compliant
Ruggedized DIN-Rail kit Modular design for optional iDoor extension
Non memory SKU with easy assembly design available
